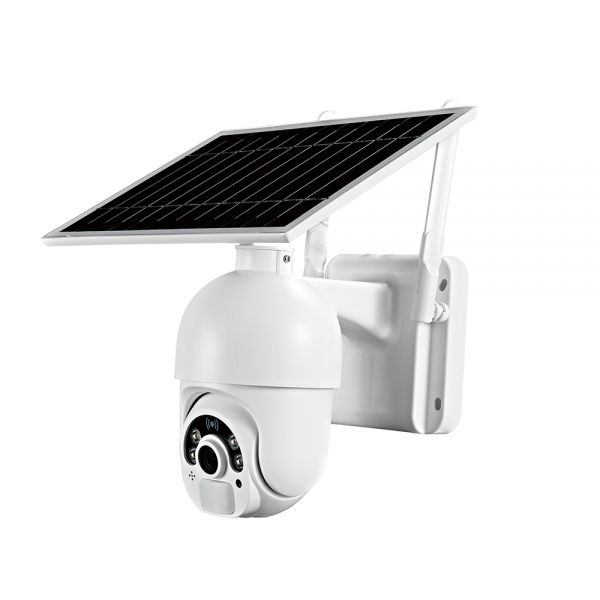

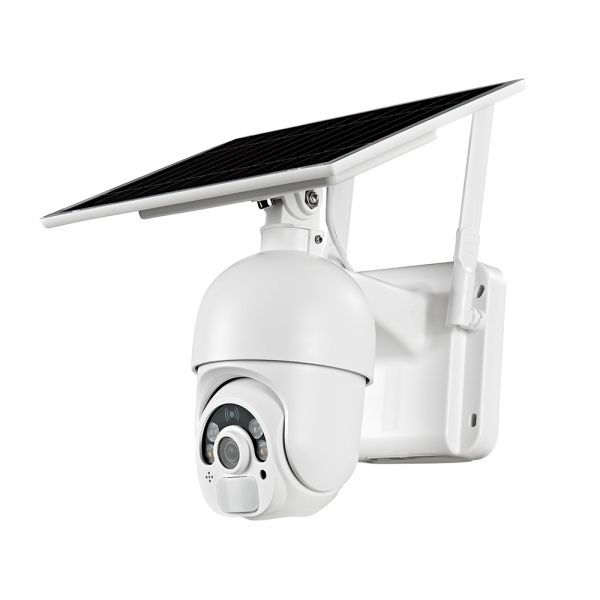

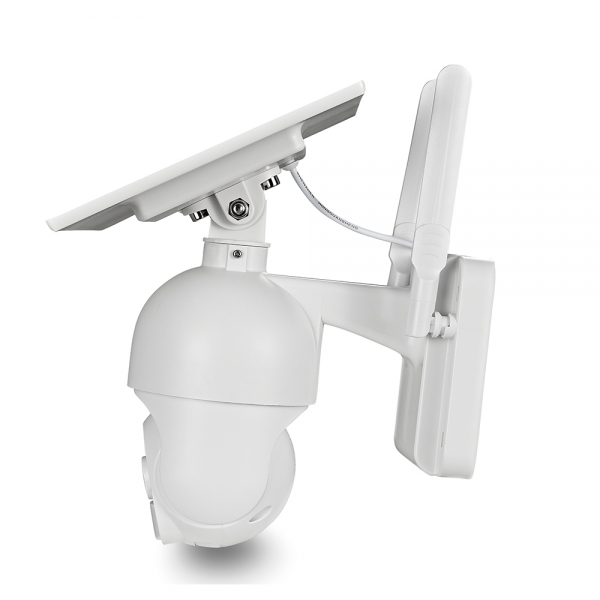

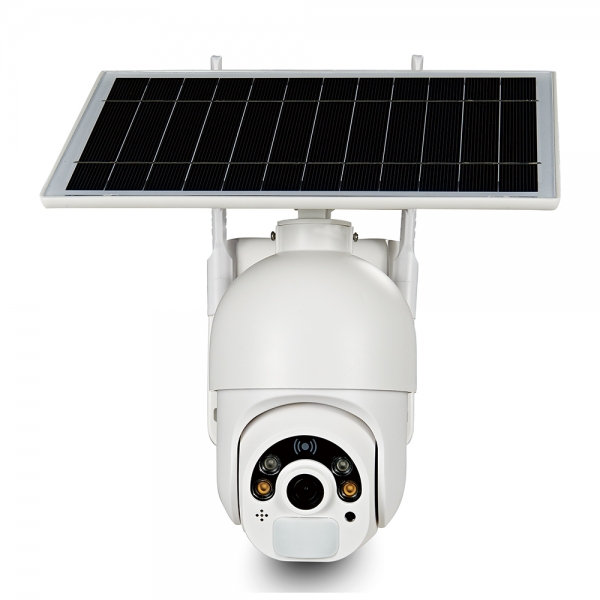

RBX-S20 Solar ball machine parameters
|
|||
|
Main feature
|
• Solar panel universal adjustment, built-in super capacity battery
• Ultra-low power standby, quick wake up in 0.2 seconds • PIR sensor + radar dual alarm detection • High-performance ISP and 1/2.7" progressive sensor, blacklight full color • 1920*1080P HD video • Built-in microphone and loudspeaker,support two way audio • Support Cloud storage and local storage • APP support Android/IOS • IP65 waterproof • Support All-in-One installation and separated installation |
||
|
Model No.
|
S20-WIFI |
||
|
General
|
Resolution
|
2MP
|
4MP
|
|
1920*1080
|
2592*1520
|
||
|
Main processor
|
Ingenic-T31ZL
|
Ingenic-T31ZX
|
|
|
Image Senor
|
GC2063
|
GC4653
|
|
|
APP Operation System
|
Android, IOS
|
||
|
Compression
|
H.264+/H.265
|
||
|
Internet Connection
|
WIFI
|
2.4GHz WIFI
|
|
|
Alarm
|
Detection Mode
|
PIR Human detection + AI Human shape detection
|
|
|
Detection Distance
|
0~12M
|
||
|
Detect Angle
|
95°
|
||
|
Alarm Mode
|
Realtime calling or push message
|
||
|
PTZ
|
PTZ Angle
|
Horizontal 355 ° Vertica 100°
|
|
|
Speed
|
Horizontal 55 °/S Vertical 40°/S
|
||
|
Night Vision
|
Full color night vision
|
0.001 Lux
|
|
|
IR LED
|
infrared LED 30M IR distance
|
||
|
White light LED
|
white light LED 30M distance
|
||
|
Audio
|
Built-in speaker (input)
|
3W
|
|
|
Built-in microphone (output)
|
voice monitoring distance 20M
|
||
|
Lens
|
Lens
|
3.6mm
|
|
|
Lens Angle
|
95°
|
||
|
Cloud Storage
|
storage when alarm recording
|
||
|
Local Storage
|
TF Card Max 128G
|
||
|
Power
|
Power Supply Mode
|
Solar Panel+ Build in Batteries
|
|
|
Panel Material
|
monocrystalline silicon
|
||
|
Solar Energy Power
|
6W
|
||
|
Battery Capacity
|
Support 4pcs 18650 batteries
|
||
|
Operating power consumption
|
4W
|
||
|
Standby consumption
|
0.003W
|
||
|
Others
|
Working Environment
|
Indoor/outdoor
|
|
|
Operation Temperature
|
-30°~+60°
|
||
|
Humidity
|
0%~90%RH
|
||
|
Package
|
N.W.
|
1.7KG/PCS
|
|
|
Giftbox size
|
242*183*150MM
|
||
|
Quantity in carton
|
9pcs
|
||
|
G.W.
|
16kg
|
||
|
Carton size
|
57*25.8*47.2cm
|
||
